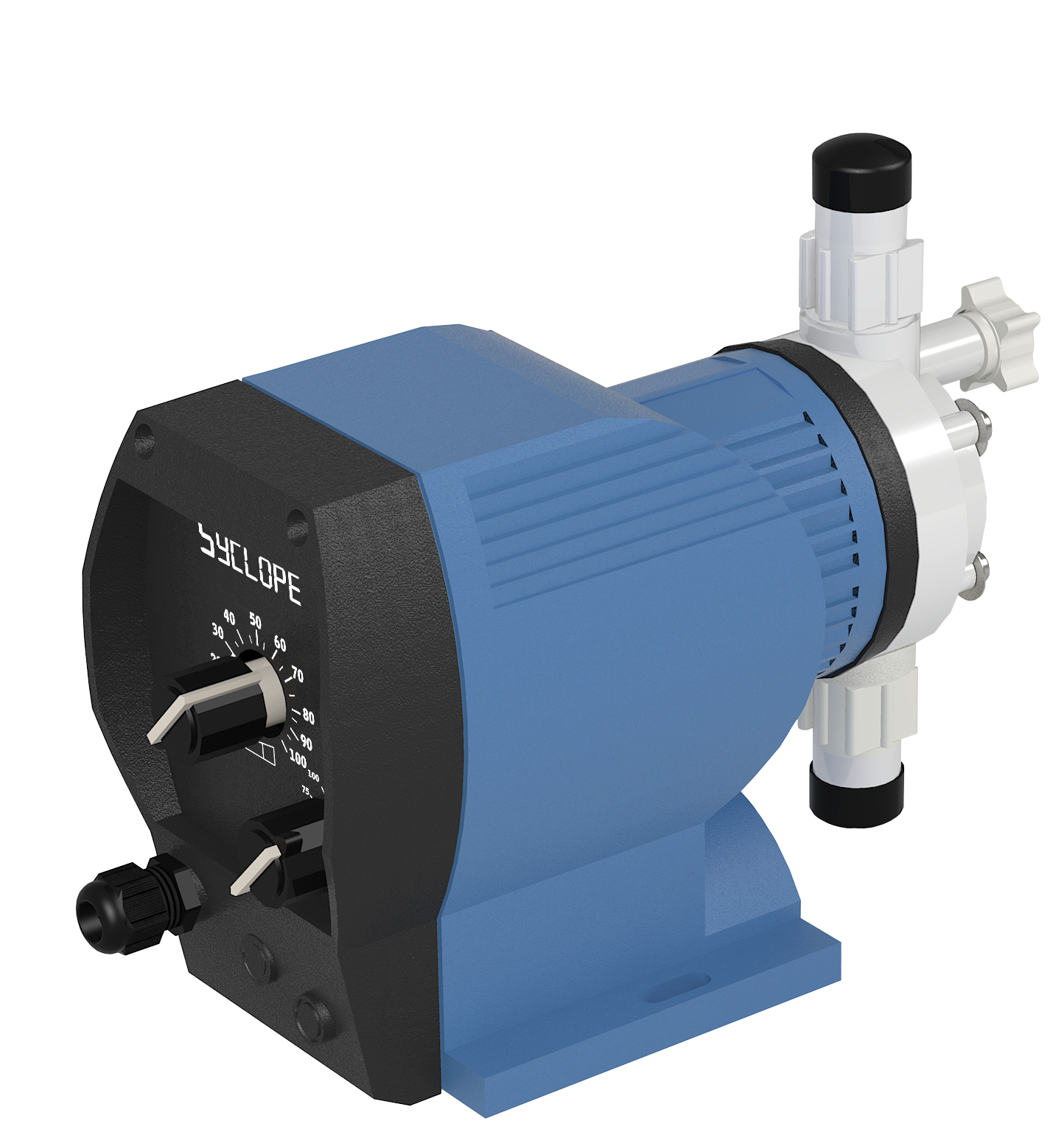

Electromagnetic pump

Electromagnetic pump for dosing chemicals

SYCLOPE offers a range of electromagnetic pumps for the dosing of chemical products with delivery rates from 0.74 to 80 l/h and counter pressures from 25 to 2 bars.

Range of electromagnetic pumps

Ecoplus, Beta, Gamma/X and Gamma/XL for the dosing of chemicals…

Tableau des pompes doseuses électromagnétiques

ECP ECOPLUS pumps

Pompe électromagnétique ECOPLIS

Electromagnetic pump – ECOPLUS

ECOPLUS electromagnetic pumps are used for the dosing of all types of liquid chemicals, even concentrated ones (sodium hypochlorite, hydrochloric acid, sulphuric acid, flocculent…) in the treatment of drinking water and swimming pool water: dosing of chemicals for disinfection and pH correction for example.

  • Available in 1.1 – 3.9 – 9 – 16.4 and 21.9 l/h and from 16 to 1.5 bar,
  • Dosing pumps made of PVDF material, PTFE seals,
  • Wide choice of flow and back pressure,
  • Easy adjustment by potentiometer: stroke length, pulse frequency…
  • Level sensor input,
  • Tank bottom detection (option),
  • External control by pulse or pause function…

BETA pumps

Pompe doseuse électromagnétique BETA

Electromagnetic pump – BETA

BETA pumps ensure precise dosing of chemicals in applications such as public swimming pools, drinking water and industrial processes.

  • Pumps with a flow range of 0.74 to 32 l/h and 25 to 2 bar,
  • Energy optimization allowing up to 50% energy savings,
  • Integrated pulse regulator (divider, pulse multiplier),
  • Dosing heads adaptable according to the chemicals used,
  • Very low wear,
  • Continuous operation,
  • Level sensor input,
  • Tank bottom detection (option),
  • Alarm and pulse return relay (optional) …

GAMMA/X & GAMMA/XL pumps

Pompe électromagnétique Gamma/X et Gamma/XL

Electromagnetic pumps – GAMMA/X et GAMMA/XL

The Gamma/ X and XL pumps are used for dosing all types of liquids. The Gamma/ XL is an electromagnetic diaphragm dosing pump, intelligent, easy to use thanks to its LCD display.

• Flow rate range of :
> 2.3 to 45 l/h and from 25 to 2 bars for the Gamma/X,
> 8 to 80 l/h and from 25 to 2 bars for the Gamma/XL,

Gamma/X and Gamma/XL features

  • Direct adjustment in l/h of the delivery rate,
  • Defect information: Hydraulic malfunctions or blocked discharge lines,
  • Measurement indication and pressure display for more safety during commissioning and use,
  • Schedule programming of dosing operations (7 days),
  • Control by external command (pulses, contact, 4-20 mA, batch.),
  • Multiplier, pulse frequency divider,
  • Level sensor input,
  • Tank bottom detection (option),
  •  Alarm and pulse return relay (optional),
  • 4-20 mA output (optional),
  • Membrane rupture warning (standard visual or optional contact display),
  • Bluetooth connection for simplified configuration and data access (optional),
  • Dosing rate setting range 1:40,000…
ECOPLUS pumps
  • 1 l/h – 3.9 l/h – 9 l/h – 16.4 and 21.9 l/h
  • from 16 to 1.5 bars
BETA pumps
  • 0.74 – 32 l/h
  • from 25 to 2 bars
GAMMA/X pumps
  • 2.3 to 45 l/h
  • from 25 to 2 bars
GAMMA/XL pumps
  • 8 to 80 l/h
  • from 25 to 2 bars
Material
  • PPE : Polypropylene Head – Polypropylene Valve – EPDM Seal
  • PPB: Polypropylene Head – Polypropylene Valve – FPM Seal (Viton)
  • PPT: Polypropylene Head – PVDF Valve – PTFE Seal
  • NPE : Acrylic Glass Head – PVC Valve – EPDM Seal
  • NPB: Acrylic Glass Head – PVC Valve – FPM Seal (Viton)
  • NPT: Acrylic Glass Head – PVDF Valve – PTFE Seal
  • PVT: PVDF Head – PVDF Valve – PTFE Seal
  • PCB : PVC head – PVC valve – FPM Seal (Viton)

Price request
