ALTICEO

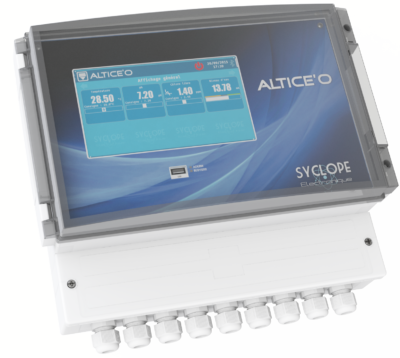

ALTICEO Multiparameter controller

The ALTICEO is a controller, connected for water treatment in public swimming pools. This equipment analyses and regulates many parameters for an optimal water quality.

Measured parameters :

The ALTICEO range can measure up to 8 parameters simultaneously on several basins at the same time. Indeed, the ALTICEO guarantees optimal measurement and regulation of the following parameters. These devices allow to follow the standards and regulations in force for public swimming pools, aquatic centers…

Temperature,
pH,
redox (ORP),
active - free - total – combined chlorine,
free bromine – BCDMH – DBDMH – sea water,
ozone,
chlorine stabilizer (cyanuric acid),

turbidity,
conductivity,
salinity,
flow detector,
flowmeter…

Advantages for your use

This device offers many advantages and is very easy to use:

First of all thanks to its large 7" colour touch screen, which allows all the information from the controller to be displayed at a glance.
In addition, the devices are equipped with integrated Bluetooth with the SysBlue application for programming, alarm notification and direct access to mysyclope.com.
And a USB port for history and programming to ensure easy follow-up and maintenance.
Then the ALTICEO enables optimal energy management: chloramines, water supply, consumption of chemical products, water quality control and energy consumption.
Its plus is the intuitive man/machine interface: operating timer, tank level management, dosing stop on alarm.
Also, this device ensures compliance with the standards and regulations in force: specialist in water treatment for public swimming pools.
On the other hand, adapted measurement chambers are available either without water loss and/or remote (measurements as close as possible to the basins).
Then each variation is adaptable: single or multi-basin version, adaptation to all basin volumes, various measures (chloramines...).
Finally, the ALTICEO ensures permanent self-diagnosis. It works with all types of chlorine, stabilized or not.
This multi-parameter equipment offers dechloramination process control and chloramine measurement.
Made in France.

PRODUCT SPECIFICATIONS

ALTICEO multi-parameter, multi-basins

Technical features

Applications	Public and collective swimming pools Seawater swimming pools, aquariums Water parks Special applications …
Programmable parameters	Temperature, pH, redox (ORP), active chlorine – free – total – combined, free bromine – BCDMH – DBDMH – sea water, ozone, chlorine stabilizer (cyanuric acid), PHMB, turbidity, conductivity, salinity, flow sensor, flowmetry
Inputs	10 analog inputs 4-20 mA 2 digital inputs 2 pulse inputs 8 calculated parameters
Outputs	6 potential-free relay outputs 6 analog outputs
Extensions	2 x 8 relay outputs 2 x 8 analog outputs
Multiple controls	Dosing pump: On/Off / Pulse / 4-20 mA Chlorine storage Ozone generator UV reactor: low and medium pressure Gaseous: chlorine / carbon dioxide
Communications	Communication protocol: MODBUS RTU (support on RS485) Large 7” touch screen Front panel USB port for recording and configuration Internet connection GSM, Wifi, Ethernet Integrated Bluetooth
Power supply	90 – 250 V – 50/60 Hz – 30 W

Example of installation

ALTICEO : example of hydraulic connection

Download

Sales brochure

ALTICE’O

Technical manual

Installation instructions

Programming instructions

Communication

Programming software

Alticom

CD key: ADDA-FBAC-FIBB-IABB
(to indicate at the installation)

Regulation

Public and collective swimming pools are governed by different water treatment standards to be respected .

Reminder of regulations

They trust us!

We have been working with them for many years: municipal swimming pools, zoological parks…

Examples of public pools
