UFPOOL-unité d'ultrafiltration pour le recyclage des eaux de lavage des piscines publiques

Ultrafiltration

UFPOOL ultrafiltration system: Water savings and profitability
Ask for a quote

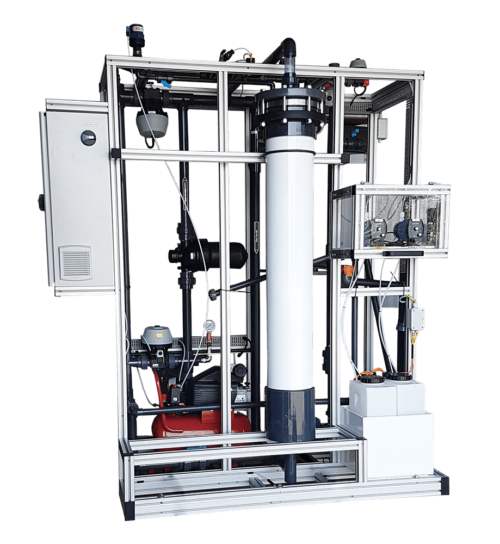

UFPOOL ultrafiltration system for water recycling

The UFPOOL ultrafiltration units, manufactured in France, are used for the recycling of the water used to wash the filters of swimming pools, in conformity with the recommendations of the Ministry of Health (DGS/EA 4 N°273). The UFPOOL range uses an external/internal hollow fiber membrane filtration for the largest possible filtration surface. Thus all small particles, viruses, microorganisms… are destroyed.
The UFPOOL offers production capacities of 20, 40, 60 and 80 m3 per day.

DOWNLOAD

Technical manual

  • UFPOOL
More information

Operation of the UFPOOL ultrafiltration units :

UFPOOL-unité d'ultrafiltration pour le recyclage des eaux de lavage des piscines publiques
1

Recovery

Recovery of filter washing water
2

Filtration

Ultrafiltration and rechlorination of this water
3

Recycling

Reuse of recycled water during new filter washing phases

How does the UFPOOL allow the optimization of the operating costs of a pool?

For a swimming pool open to the public, heating and water treatment are two costly and very energy consuming items. It is therefore necessary to find solutions to limit these energy consuming items and to control the costs due to the treatment and the addition of new water.

The UFPOOL ultrafiltration units allow the recycling of the filter washing water to :

  • Control water losses (heated and treated water) by reusing part of this water and thus reduce energy consumption for reprocessing and reheating “new” water.
  • To also control the input of new water thanks to the recycling of ultra-filtered water.
  • Guarantee a low operating cost, 0.11 KW per m3 of treated water, for a quick return on investment.

PLUS FOR YOUR USE

UFPOOL units have many advantages

Water Recycling

First of all, this solution responds to the environmental and economic issues related to water treatment,

For swimming pools

The product, made in France, has been developed and designed for recreational waters,

Fast amortization

Its amortization is fast and the operating cost is low,

Rapid installation

The equipment is delivered complete: installation ready to operate,

Automatic chlorination

The chlorination of the ultrafiltered water is automatic at the skid outlet and before the clean water storage tank,

Optimized membrane lifetime

Also the filtration quality is optimized and the service life of the membranes is optimized,

Works with all media-filters

On the other hand, the process works with all types of filter media: sand, hydro-anthracite, glass...

Fiability

It is not necessary to add a pre-filtration system,

Feature

The quality of the ultrafiltered water is independent of the system settings,

Savings

The volume of water used for backwashing is generally between 5 and 9% of the volume produced, which is equivalent to a yield of 95 to 91%.

Remote monitoring

Communication is integrated for real-time and remote monitoring of the UFPOOL,

SYCLOPE Monitoring

The know-how and the SYCLOPE service (free feasibility study) is at your disposal.

TECHNICAL FEATURES

Application

  • Public swimming pool

Membrane

  • Material: PVDF
  • Porosity: 0.015 micron
  • Configuration: Hollow fiber – outer/inner filtration

Module

  • Type: PVDF double skin hollow fiber membrane with external/internal filtration
  • Length: 1740 mm
  • Diameter: 340 mm
  • Filtering surface :
    • 20 m3/day : 73 m²
    • 40 m3/day : 146 m²
    • 60 m3/day : 146 m²
    • 80 m3/day : 219 m²
  • Number of modules :
    • 20 m3/day : 1 installed online
    • 40 m3/day : 2 installed in line
    • 60 m3/day: 2 installed in line
    • 80 m3/day: 3 installed in line

System

  • Frontal
  • 0,5 – 1,5 bar

Backwashing

  • Type: Reverse flow using treated water and air
  • Frequency: 20 – 180 minutes
  • Duration: 30 – 60 seconds
  • Volume: 5 to 10%

General

  • Maximum pressure: 3.0 bar
  • Maximum Ptm: 2.5 bars
  • Temperature: 0 – 35 °C
  • pH: 2 to 12

Centrifugal pumps

  • Material: stainless steel 316 L

Tanks

  • 20 m3/day : 800 l
  • 40 m3/day : 1200 l
  • 60 m3/day : 1200 l
  • 80 m3/day : 1200 l

Electricity

  • Power supply: 230-400 VAC – 50 Hz – 3P+T.

Installation type

UFPOOL : Ultrafiltration pour le recyclage de l'eau

Regulation of public pools

Public and commercial swimming pools are governed by different water treatment standards to be respected…

Access to the standard

We are here to support you …

Do you have any questions? Need a diagnosis, recommendations? Need a documentation, an estimate ? The SYCLOPE team is at your disposal …

Contact us

Price request
