Analysis & Controls

INDIGO

INDIGO : pour l'analyse et la regulation de l'eau de piscines

Chlorine or pH controller

INDIGO : pour l'analyse et la regulation de l'eau de piscines

Chlorine or pH controller: single-pool and single-parameter

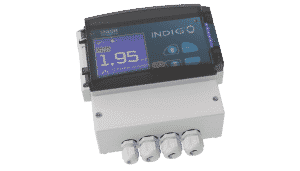

The INDIG’O is a single-parameter chlorine or pH controller for monitoring pool water quality.
It ensures the regulation and control of pH or chlorine in a simple and intuitive way. It is a very easy device to handle, install and use, which allows you to maintain an optimal water quality in accordance with the regulations in force.

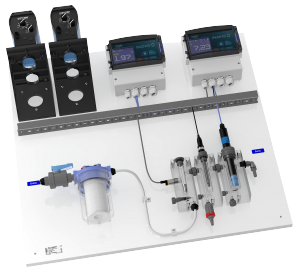

Mounted on a panel, installation is easy.

Measured parameters:

The INDIGO range allows the analysis and control of a parameter.

  • Temperature
  • or pH
  • or Redox (ORP)
  • or Chlorine
  • or Bromine
Ask for a quote

Download

Sales brochure

INDIG’O

Ask for a quote

Technical manual

téléchargement pdf  Installation

téléchargement pdf  Programming

The INDIGO is a very easy to use chlorine or ph controller

The PLUS for your use

Turnkey equipment

Easy to install and use

Any type of pool volume

Any type of chlorine or bromine

Attractive price and low operating costs

Self-diagnostics of operation

Indication of sensor maintenance + indication of legal thresholds

Made in France

Applications
  • Collective swimming pool
  • Camping
  • Hotel
  • Thalassos
  • Spas
Programmable parameters
  • Temperature
  • or pH
  • or Redox (ORP)
  • or Chlorine
  • or Bromine
Inputs
  • 1 measuring input 4-20 mA amperometric or potentiometric sensor (pH or ORP)
  • 1 control input for control of regulations
Outputs
  • 1 output 4-20 mA transfer
  • 1 power relay output max 5 A / 240 VAC
  • 1 alarm output on dry contact relay
Features
  • Proportional control mode
  • On/Off control mode with hysteresis
  • Regulation stop mode
Types of alarms
  • Depending on the low/high threshold
  • Flow control of the measuring chamber
Communication
  • Without
Power supply
  •  90 – 240 VAC – 50/60 Hz

Regulation of public pools

Public and collective swimming pools are governed by different water treatment standards that must be respected…

Go to the standard

Chloramines in public pools

The problem of chloramines in the water of public and collective swimming pools is a recurrent subject…

Chloramines
