Oditouch pour le traitement de l'eau despiscines publiques

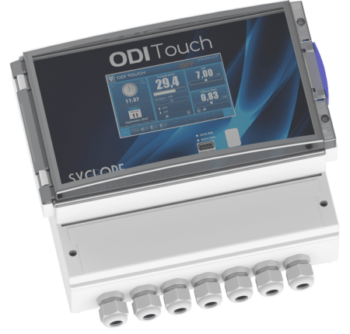

Single-pool and multi-parameter controller

Panneau ODITouch multi-paramètres et mono-bassin

Optimal management of a pool

SYCLOPE Electronique widens its range dedicated to public and Olympic swimming pools, water sports stadiums and proposes the ODITouch single pool and multi-parameters.

This new equipment allows to manage several different parameters at the same time in one and the same pool.

Measured parameters:

The ODITouch range allows compliance with the standards and regulations in force for public swimming pools, aquatic centers… and treatment of several parameters at the same time in one and the same pool…

  • Temperature
  • pH
  • redox (ORP)
  • active chlorine – free – total
  • bromine sea water
  • ozone
  • chlorine stabilizer (isocyanuric acid)
  • turbidity
  • conductivity
  • flow

chemical calculations  :

Ask for a quote

Download

Ask us your questions

Sales brochure

ODITouch

Technical manuals

téléchargement pdf  Installation

téléchargement pdf  Programming

téléchargement pdf  Communication

Technical manuals for panels

téléchargement pdf  Installation – ODT1311

téléchargement pdf  Installation – ODT3415

téléchargement pdf  Installation – ODT1411

téléchargement pdf  Installation – ODT1211

téléchargement pdf  Installation – ODT3515

The ODITouch is an easy to use and efficient equipment

The PLUS for your use

Easy reading

Simple and intuitive operation: large touch screen to visualize at a glance the operating status of the device and its alarms

Connectivity

Equipped as standard with Wifi communication

Backup

Front panel USB port for data backup, configuration and updates

Configurable

Configurations adaptable to customer needs: management of all types of chlorine (stabilized or not) and all types of pool volumes

Regulations

Compliance with the standards and regulations in place: specialist in the treatment of water for public swimming pools

Alarms

Stop dosing on high and/or low alarms and on chemical tank bottoms

Chloramines

Monitoring of chloramines in water by calculating its concentration in a clear way

Feature

Proposed equipment mounted on panel, pre-wired and pre-mounted, in order to facilitate its installation

Reliability

Equipped with programmable maximum daily dosing time

Made in France

Applications
  • Municipal pools
  • Collective swimming pools
  • Campsites
  • Hotels
  • Co-ownerships
  • Thalassos
  • …
Possible configurations
  • pH, Free Chlorine
  • T°C, pH, Free Chlorine
  • T°C, pH, Redox, Free Chlorine
  • T°C, pH, Free Chlorine & Total Chlorine
  • T°C, pH, Redox, Free Chlorine & Total Chlorine
Possible measures
  • Temperature
  • pH
  • ORP (Redox)
  • Free chlorine – active – total
  • Bromine sea water
  • Ozone
  • Stabilizer
  • Turbidity
  • Conductivity
  • Flow rate…
Chemical calculations
  • Chloramines
  • Active chlorine
  • Salinity
  • …
Inputs
  • 2 potentiometric inputs
  • 2 isolated 4/20 mA inputs (chlorine sensors)
  • 2 non-isolated 4/20 mA inputs (conductivity, turbidity and temperature sensors)
  • 4 digital inputs: tank level, CAD, flow rate…
  • 8 timers
  • 1 USB port for data backup, configuration and updates
  • Up to 8 measured/calculated parameters
  • Control of all types of actuators: dosing pumps, solenoid valves, roller storage, UV……
Outputs
  • 6 relay outputs:
    – 2 power relays 230V
    – 2 dry contact relays (max. 240 pulses/min) (with this control mode, the dosing units can be supplied with 230 V)
    – 2 electronic relays (max. 500 pulses/min)
  • 4 analog outputs 0/4-20 mA
  • 1 output 12V
  • 1 RS485 output (Modbus RTU)
  • Connection to mysyclope.com via Ethernet Modem, WIFI (included) or GSM for remote access
Power supply
  • 90 – 250 V – 50/60 Hz – 30 W
