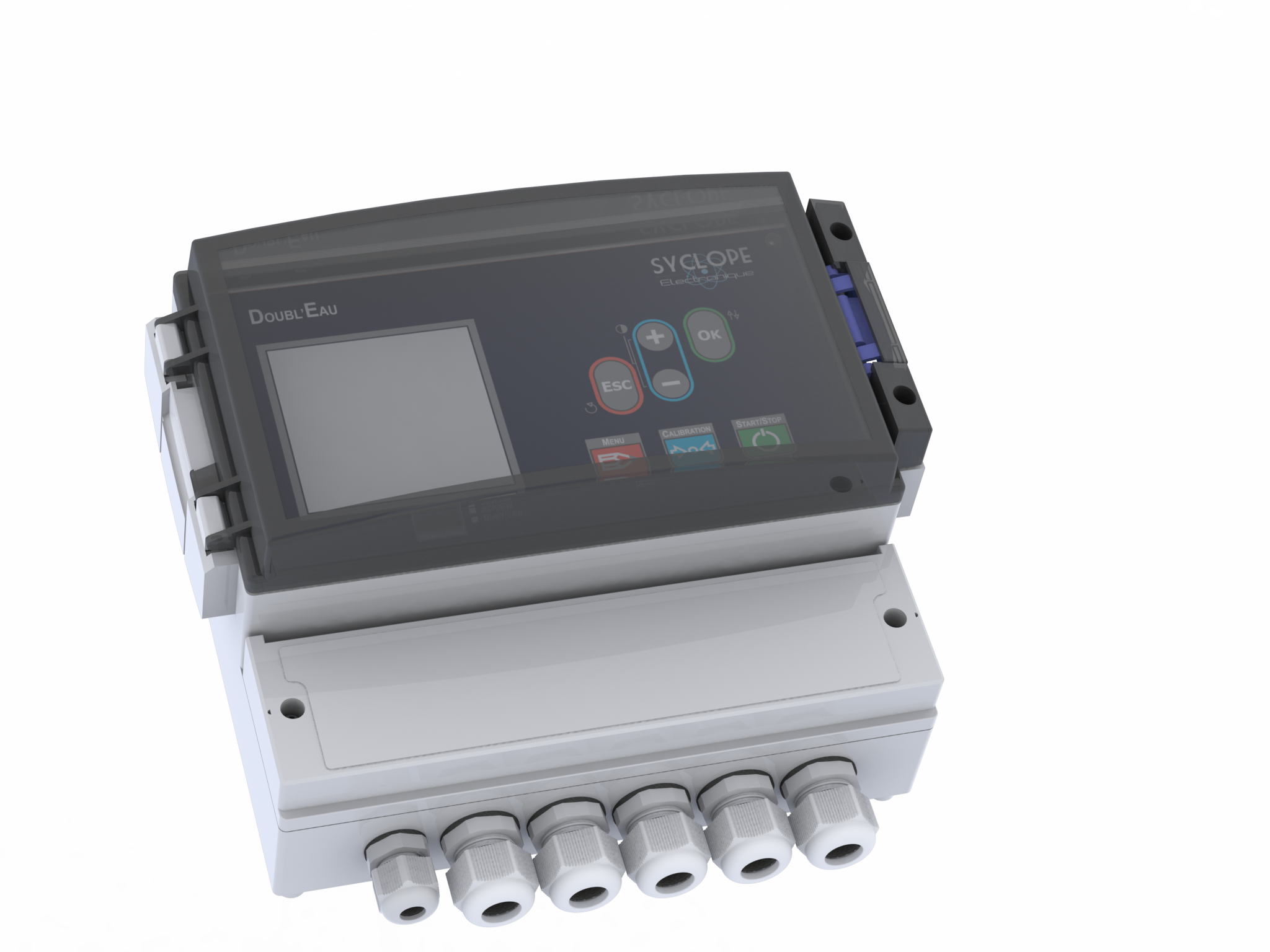

DOUBLEAU

For drinking and industrial water quality

The DOUBLEAU is a multi-sector analyzer/controller. It allows to control the water quality of various parameters (adjustable bi-parameter measurement).

Measured parameters:

The DOUBLEAU range offers a very wide choice of measures…

  • Temperature
  • pH
  • redox (ORP)
  • active chlorine – free – total – combined
  • free bromine – BCDMH – DBDMH – sea water
  • ozone
  • chlorine stabilizer (isocyanuric acid)
  • PHMB
  • turbidity
  • conductivity
  • salinity
  • flow detector
  • flowmetry…
The DOUBLEAU offers many advantages and a great ease of use

The PLUS for your use

Many measurement parameters

Chemical calculation between several measures

Flow proportional dosing

Easy to use and install

Faults and anomalies clearly displayed

Wide choice of all-terrain probes

Connection to any type of dosing: solenoid valves, dosing pumps...

Made in France

Applications
  • Drinking water
  • Domestic hot water
  • Process water
  • NEP/ICP
  • Sewage water
  • Medical Industries
  • Environment
Measured parameters
  • Temperature, pH, Redox (ORP), Free chlorine, active, total, Chlorine stabilizer (cyanuric acid), Chlorine dioxide, Chlorites, Bromine (BCDMH, DBDMH, Bromides), Ozone, Oxygen, Peracetic acid, Hydrogen peroxide, Gross current (mA) in compensation, …
Front panel USB connection
  • For data recording
  • For machine reprogramming
Regulation mode
  • P or PI or PID or automatic
  • Hysteresis, thresholds
Inputs and Clock operation
  • 1 potentiometric input (pH/Redox) +/- 2500 mV
  • 1 RTD input (pt100)-10 … 110 ]C
  • 2 inputs 4-20 mA powered (12/24 V)
  • 2 impulse input or contact for  “ON/OFF remote control” or “flow measurement”
  • Value of the measured parameters based on one or more sensors
  • Operation clock for programming operation hours of the device
  • Individual programming of relays on timers
  • Chemical calculation between several inputs
Analog outputs and relay outputs
  • 4 electronic relays, dry contact max. 50 mA / 48 VAC
  • 2 single-pole two-position relays, 4A / 240 VAC dry contact
  • 2 self-powered relays via line 1a / 240 VAC
  • 2 analog outputs 0-4 / 20 mA
  • 1 x 12/24 V power supply to supply measurement cells
  • 1 x 12 VDC power supply to power an external module max 0.1 A
    communications
Communication
  • 1 RS485 communication bus output
