Temperature sensor

How to measure the water temperature?

For the measurement of the temperature in water, SYCLOPE offers 2 ranges of temperature sensor:

PVC temperature sensor

These silicon sensor probes are used for difficult and aggressive liquid environments.

Temperature sensor GLASS

The glass body of these probes increases the analytical reactivity in water. Thanks to their BNC connector, the connection to the analysis devices is quick and easy.

What are the advantages of these temperature sensors?

The PLUS for your use

Accurate and reliable continuous analysis

Rapidity of execution

All temperature sensors transmit the value via a 4-20 mA connection.

The sensors support the pressure: PVC probe: 8 bars and GLASS probe: 10 bars.

Wintering & Return to service

To help you during the wintering and the restarting of your probes, you can download the following infographics…

Temperature sensor GLASS

Applications
  • Swimming pools
  • Industrial process
Measure
  • Temperature (T°C)
Material and type of protection
  • Glass
Electronic sensor
  • Analogical
Measuring range
  • -5 to 45°C : CAT2905
  • 0 to 100°C : CAT2900
Storage temperature
  • -20 to 60°C
Maximum pressure and flow rate
  • 10 bars
  • Mini : 30 l/h
  • Maxi : 80 l/h
  • Recommended : 50 l/h
Start-up time and final calibration
  • First calibration after 5 min
  • After 1 hour
Response time (T90)
  • 4 mn max.
Power supply and output signal
  • 10 – 28 VDC
  • 4-20 mA

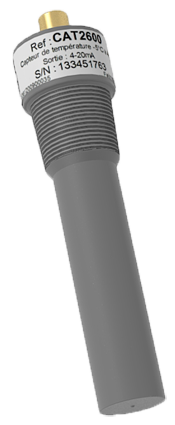

PVC temperature sensors

Applications
  • Swimming pools
  • Industrial process
Measure
  • Temperature (T°C)
Material and type of protection
  • PVC grey
  • IP 55
Electronic sensor
  • Silicium
Measuring range
  • -5 to 45°C : CAT2600, CAT2602 & CAT2700
Storage temperature
  • -20 to 60°C
Maximum pressure and flow rate
  • 8 bars
  • Mini : 20 l/h
  • Maxi : 80 l/h
  • Recommended : 30 l/h
Start-up time and final calibration
  • First calibration after 5 min
  • After 1 hour
Response time (T90)
  • 4 mn max.
Power supply and output signal
  • 10 – 28 VDC
  • 4-20 mA
