Measuring cells

Pool and process water analysis cell

Process water and pool analysis cell

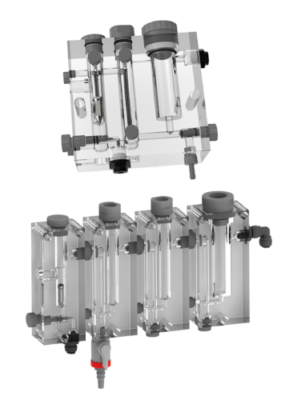

Transparent PMMA measuring cells are used for a better view of the water circulation. Adaptable in monobloc or modular version, these analysis cells can receive from 1 to several probes and sensors measures: temperature, pH, chlorine, ozone, bromine… The swimming pool analysis cell is proposed mainly in modular version.

Possible measures :

  • Free or total chlorine by membrane amperometric probe and compatible with the stabilizer,
  • Active chlorine by membrane amperometric probe,
  • pH,
  • Temperature,
  • Redox (oxidability).
Advantages of the PMMA transparent process water and pool analysis cell

The PLUS for your use

For pools

The modular analysis cells are mainly suitable for swimming pool water

And for drinking water...

Monobloc analysis cells will be used more for industrial applications, drinking water, hot water (max. 70°C), process water...

All types of sensors

The advantage of these cells is that they can be adapted to all types of amperometric or other sensors: chlorine, ph, temperature, ozone...

Different connections possible

The connection can be made either to a drain connection or to a pressure connection (max. 8 bar)

Flow rate adjustment

The flow regulation system is adjusted by micrometric screw

Magnetic float

The magnetic float offers a complete visualization of the fluid flow in the measurement cell

Material

The block material is PMMA and the seals are made of EPDM, FPM

Accessories

For accessories, material in PVC, PVDF, stainless steel, PA, acetal depending on the application

Maximum temperature

Max temperature for PVC: 40°C and for PVDF: 70°C

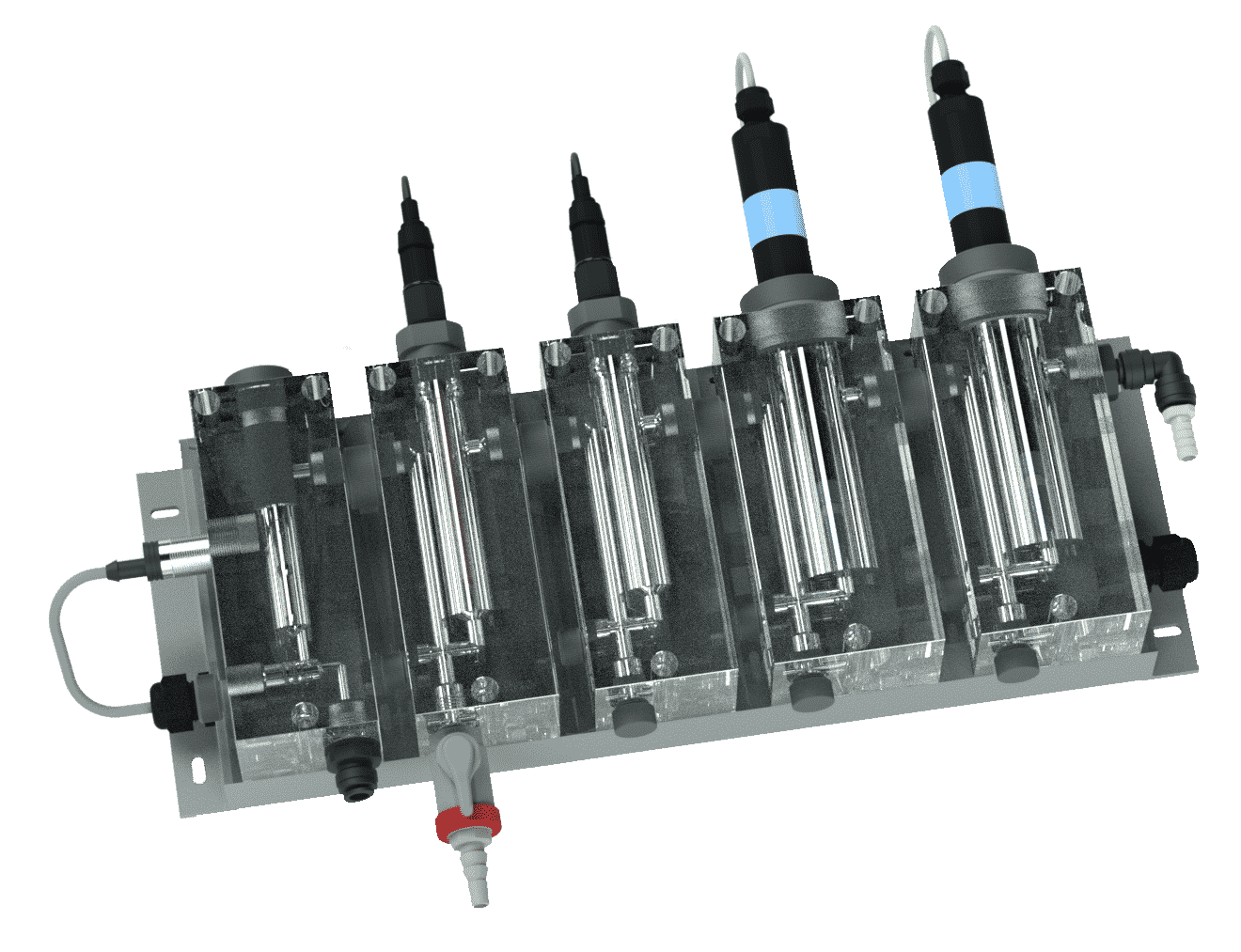

Modular PMMA cells

Applications
  • Recreational waters
  • Drinking water
  • Process water
Advantages
  • Association of additional modules as required
  • Cost-effective solution
  • 1 single sample for all measurements
  • Adaptation of the connections according to the application
Configurations
  • 1 flow block
  • and/or PG13.5 sensors: pH, ORP, ORP…
  • Adapter 1/2 “: temperature…
  • And/or amperometric or other sensors

Monobloc PMMA cells

Applications
  • Industries
  • Drinking Water
  • Sanitary Hot Water
Advantages
  • Single or multi-parameter cell housing
  • Robust and compact
  • Pressure resistance (max. 8 bar)
  • Temperature resistance (max. 70°C)
  • Installation distance of 1000 m possible between controller and measuring cell
Configurations
  • 1 flow block
  • And/or PG13.5 sensors: pH, ORP, ORP…
  • Adapter 1/2 “: temperature…
  • And/Or amperometric or other sensors

Notices techniques

Annexes de branchement

AMM0410

AMM0350

AMZ0160

AMM0150

AMM0160

AMM0511

Notices techniques

Annexes de branchement

EMP0001

EMP0002

EMP0003

EMP0005

EMP0008

EMP0009

EMP1101

EMP3101

Notices techniques

Annexes de branchement

EMP3102

EMP3103

EMP3105

EMP3111

EMP3112

EMP3113

EMP3115
